Englishプレゼンテーション：長嶋 洋一
Bio-sensing demo with Max7 (DoubleMyo, MuseOSC, PAW-eight and VPP-SUAC)
This is a small lecture/demo intended for interactive performance.
The first part is the special techniques using bio-sensing systems which are commercially available.
(1) The “Myo” armband is very smart/powerful gesture sensor, however it
is a waste in default usage that its high performance is not utilized.
In this demo, I will show three original techniques – how to use 2 Myo
at the same time, how to avoid Myo’s sleeping, and how to get directly
data such as 8ch-EMG and 9-D(3D accel, 3D direction, 3D gyro) via
Bluetooth in Max7 environment.

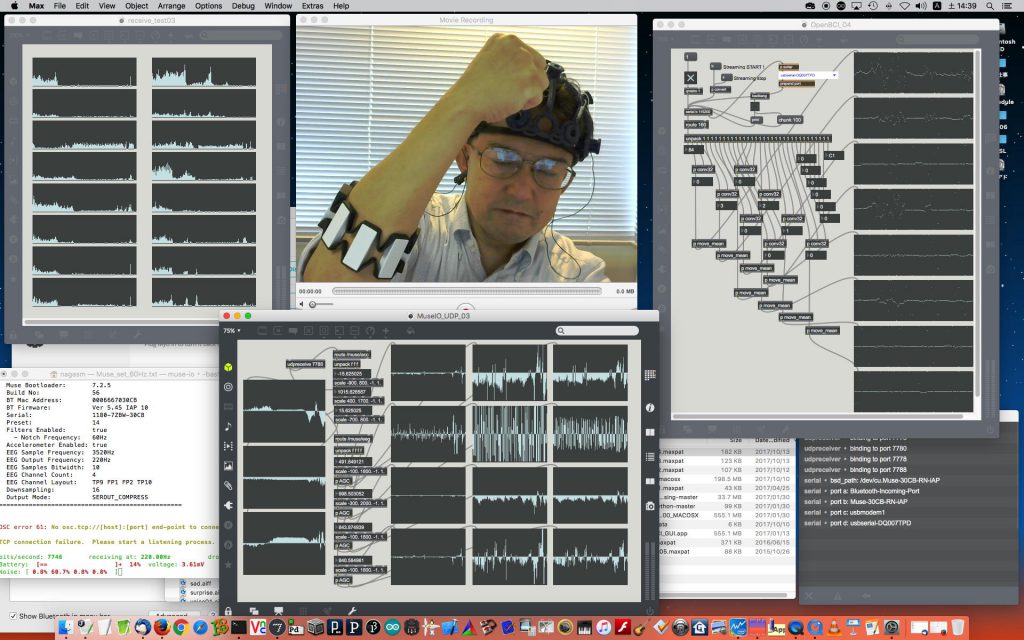

(2) The “MUSE” headband is very smart brain sensor, however its default
application is limited only meditation training. In this demo, I will
show the original technique – how to get directly data such as 4ch-brain
waves and 3D-direction via Bluetooth in Max7 environment.
(3) The combination application using “double Myo” and “MUSE” will be shown – as a realtime interactive multimedia performance.
The second part is two cutting-edge bio-sensing topics.
(4) I developed a novel 4ch EMG sensor system called “VPP-SUAC” in 2017.
The whole development data is open-source in the Web, and we are
welcome to develop the second source. While Myo is an “exclusive for
arm” EMG sensor, our sensor focuses on sensing legs and lower body EMG
which are important in welfare and rehabilitation area, and we are
promoting collaboration with experts – medical/welfare/nursing/care.
(5) The other is a new special tactile/rubbing sensor called “PAW
sensor”. The “PAW sensor” is a small PCB with a large cylinder of
urethane foam on it. The output information of this sensor is four
channel voltages which is time-shared conversion, which means the
nuances of rubbing/touching the urethane foam with ones fingers. In this
demo, I will show this “PAW-eight” with eight sensors on it and its
experimental Max7 patch which generates 3-D realtime sounds/graphics for
healing entertainment or prevention of dementia.
*** Sample materials
YouTube Demo movies
http://www.youtube.com/watch?v=RFFM7IBnQi8
http://www.youtube.com/watch?v=Bo0nEPfDA20
http://www.youtube.com/watch?v=zeoBzi_Cq-I
Presentation (and photos)
http://nagasm.org/ASL/TUA2017/
http://nagasm.org/Sketching/VPP-SUAC.html
Papers
http://nagasm.org/ASL/paper/ICMC2016_nagasm.pdf
http://nagasm.org/ASL/paper/VS-Games2016.pdf
http://nagasm.org/ASL/paper/NIME2016_nagasm.pdf
長嶋 洋一 Yoichi Nagashima
1958年茨城県生まれ。作曲家/研究者/PE(技術士)
。京都大学理学部(素粒子物理学)卒。京都市立芸術大学大学院美術研究科後期博士課程(メディアアート専攻)単位取得満期退学。河合楽器を経て、1991
年より Art & Science Laboratory 代表、ASL長嶋技術士事務所
所長。2000年4月静岡文化芸術大学デザイン学部デザイン学科(2006年3月まで技術造形学科、2017年3月までメディア造形学科)助教授、
2003年12月静岡文化芸術大学大学院デザイン研究科助教授、2007年4月より教授。
音楽を中心としたメディア・アートの領域において、コンピュータ・エレクトロニクス技術を活用したヒューマンインターフェース、マルチメディア/ネット
ワーク/インタラクション等のテーマでの研究・創作・教育などの活動を行っている。生体ITコミュニケーションArt、五感を超える環境HI、
Fractal数学に基づく新しい音楽理論の構築、などに興味を持っている。 VPP 同人。
